Heavy load autonomous driving logistics vehicle

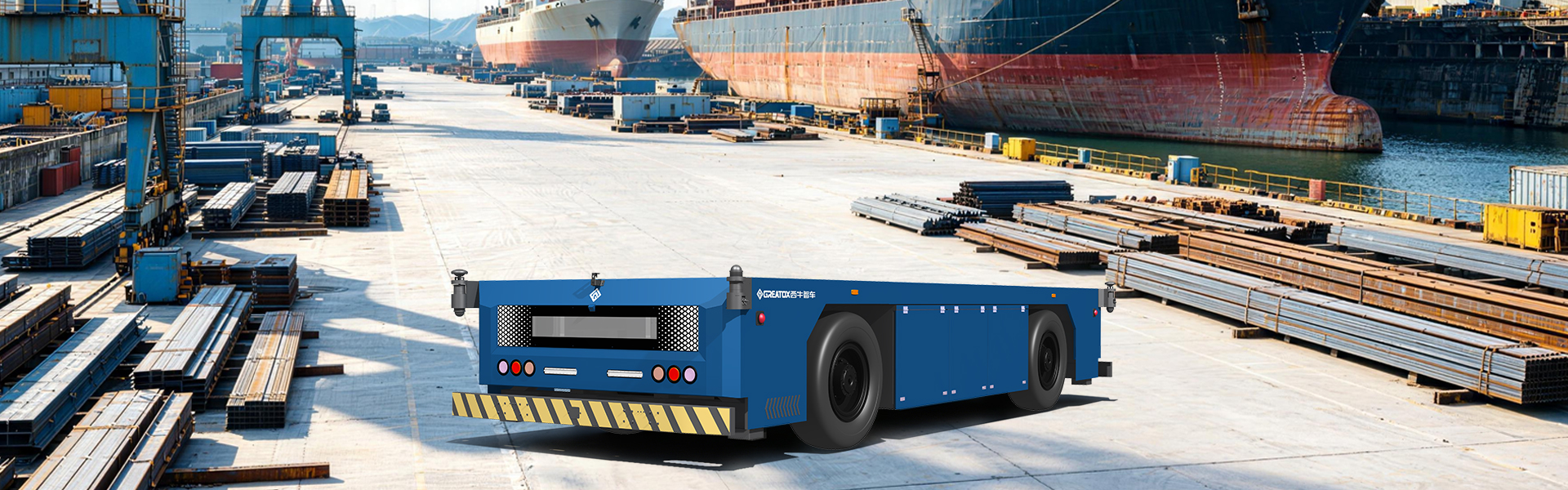

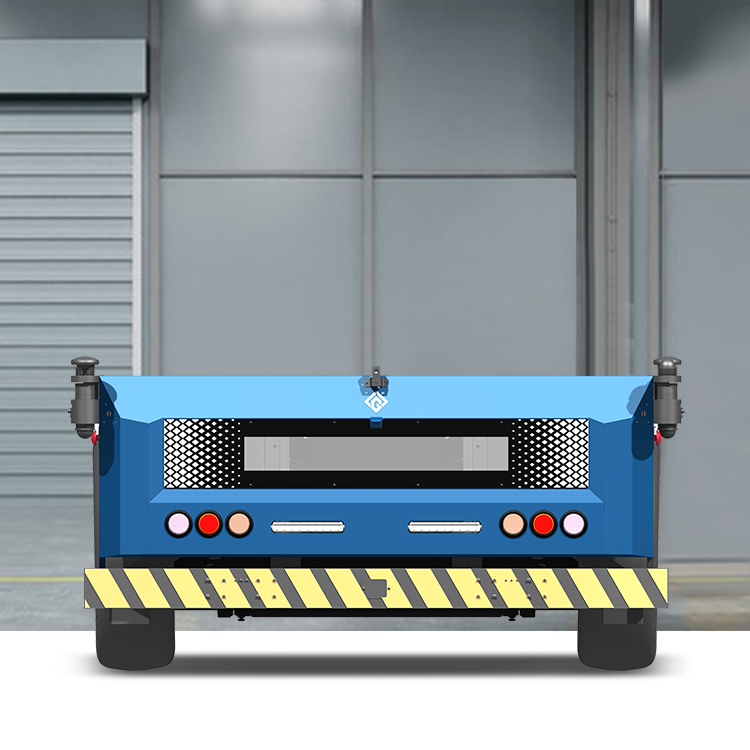

30 ton load autonomous driving logistics vehicle
Features and advantages

able to travel in both directions and move diagonally

01

The maximum ground clearance can reach 400mm

02

Can travel at extremely low speeds of 0.1m/s

03

360° environmental perception without blind spots

04

L4 level autonomous driving

05

Full load speed of 35Km/h

06

remote driving and remote fault diagnosis

07
Technical Specifications

Vehicle model:

GTA30

Driving form:

4×2

Curb weight:

≤15T

Load capacity:

30T

Wheelbase:

5000mm

The minimum ground clearance:

≥150mm

Maximum driving speed with full load:

35km/h

Maximum driving speed with empty load:

35km/h

Maximum acceleration with full load:

≥3m/s²

Maximum deceleration with full load:

≥5m/s²

Maximum Climbing Capacity:

≥7%

Minimum turning radius:

≤8000mm

Vehicle range:

85km/170km

Dimensions:

Length×Width×Height

Power battery battery capacity:

141 kWh /282 kWh

Power battery capacity:

614VDC
