Heavy load autonomous driving logistics vehicle

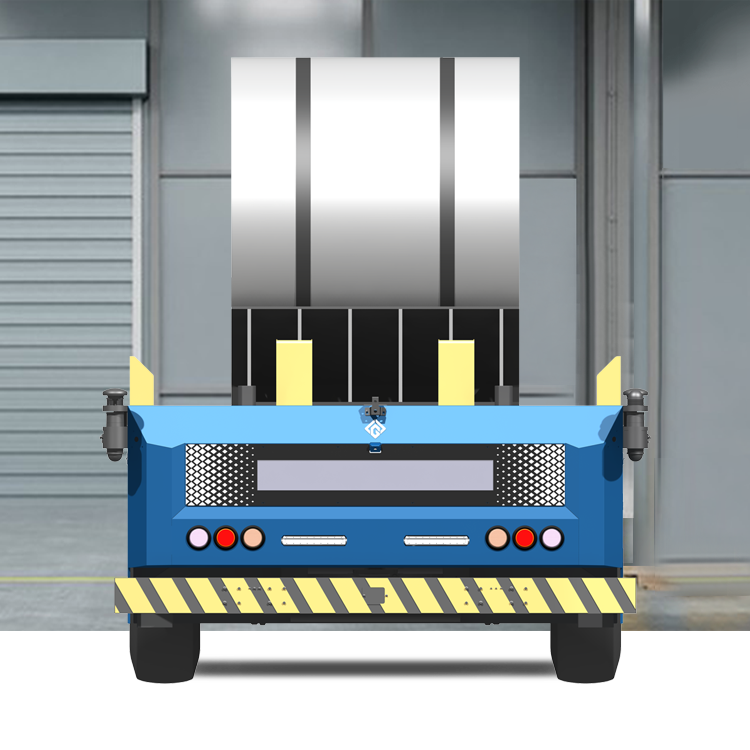

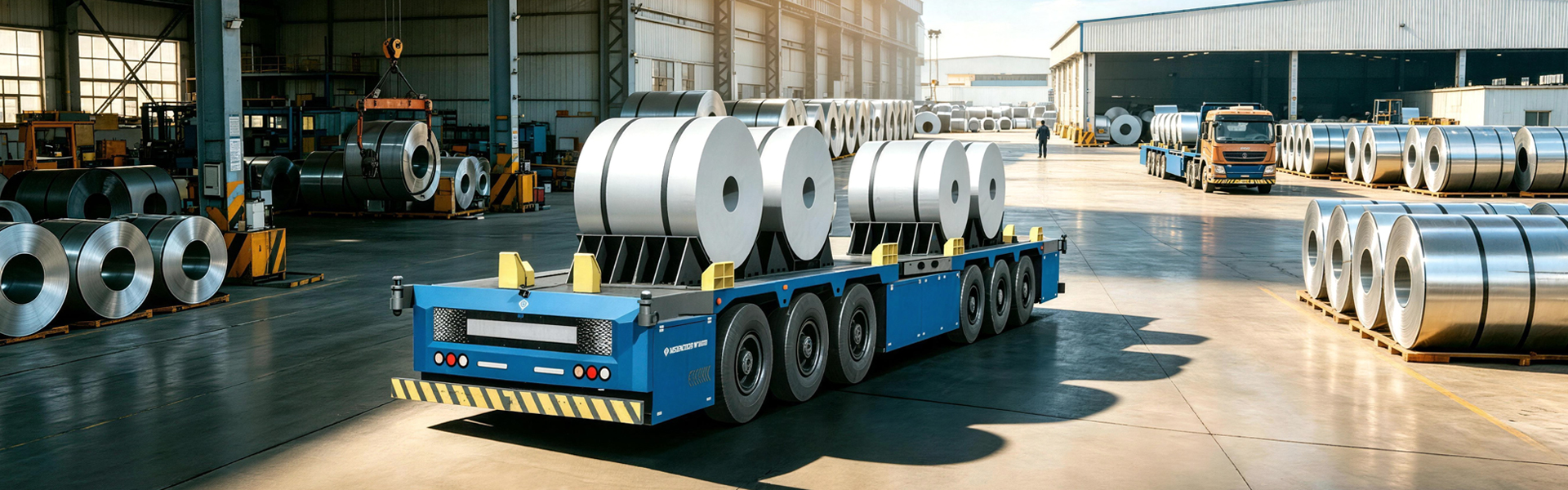

120 ton load automatic driving logistics vehicle
Features and advantages

able to travel in both directions and move diagonally

01

360° environmental perception without blind spots

02

L4 level autonomous driving

03

Full load speed of 35Km/h

04

remote driving and remote fault diagnosis

05
Technical Specifications

Vehicle model:

GTA120

Driving form:

12×4

Curb weight:

≤35T

Load capacity:

120T

Wheelbase:

1650mm-1650mm-5200mm-1650mm-1650mm

The minimum ground clearance:

≥150mm

Maximum driving speed with full load:

35km/h

Maximum driving speed with empty load:

35km/h

Maximum acceleration with full load:

≥2m/s²

Maximum deceleration with full load:

≥6m/s²

Maximum Climbing Capacity:

≥5%

Minimum turning radius:

≤15000mm

Vehicle range:

60km/850km/105km

Dimensions:

Length×Width×Height

Power battery battery capacity:

282 kWh /350 kWh/424 kWh

Power battery capacity:

614VDC
