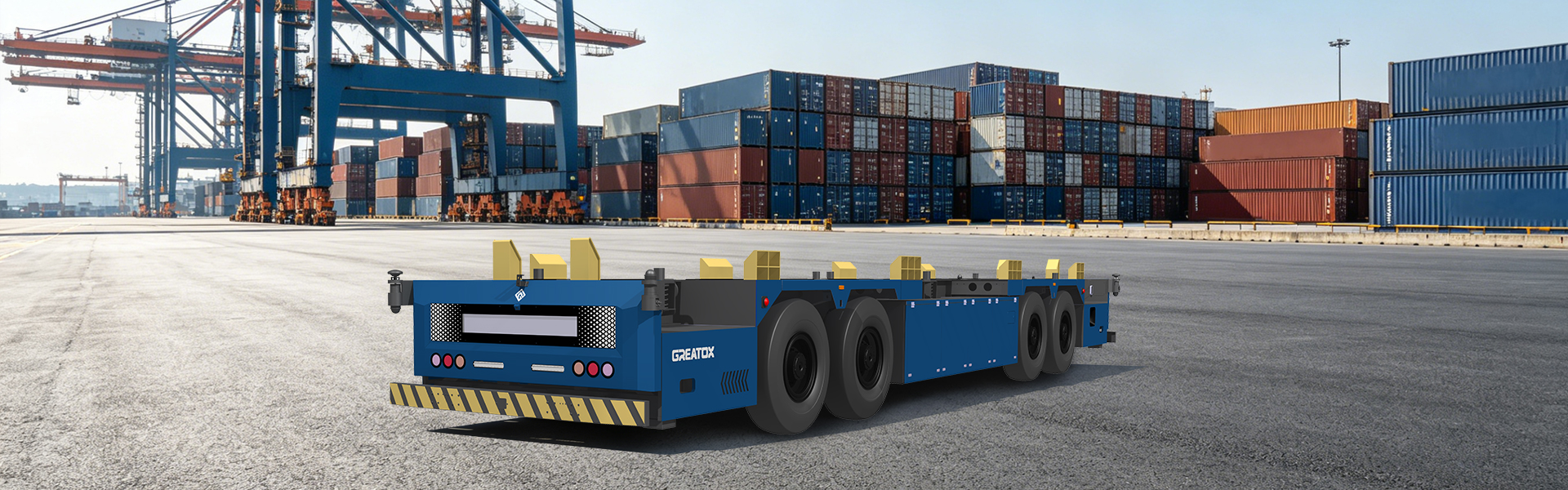

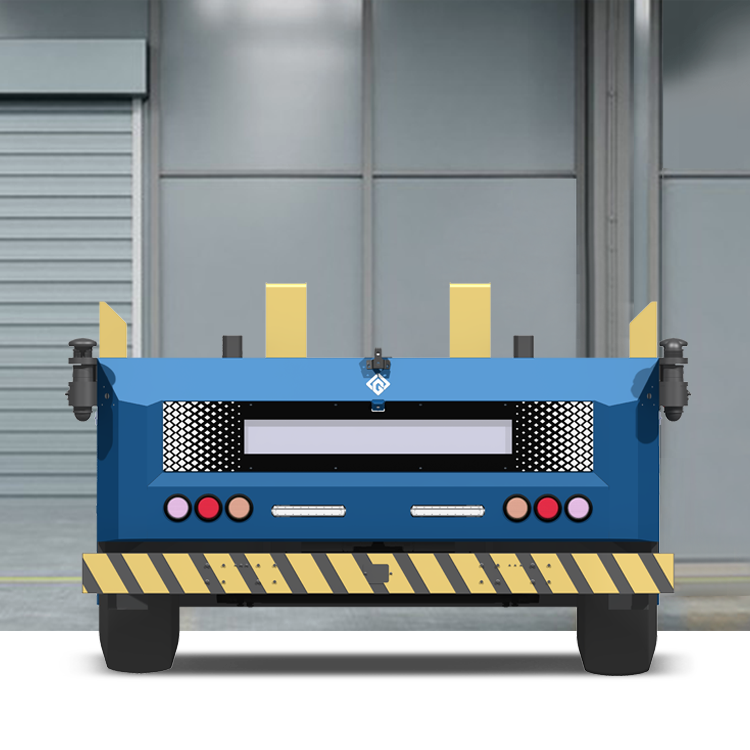

Heavy load autonomous driving logistics vehicle
65 ton load port AGV
Features and advantages

able to travel in both directions and move diagonally

01

360° environmental perception without blind spots

02

L4 level autonomous driving

03

Full load speed of 35Km/h

04

remote driving and remote fault diagnosis

05
Technical Specifications

Vehicle model:

GTA65

Driving form:

8×4

Curb weight:

≤22T

Load capacity:

65T

Wheelbase:

1650mm-6000mm-1650mm

The minimum ground clearance:

≥150mm

Maximum driving speed with full load:

35km/h

Maximum driving speed with empty load:

35km/h

Maximum acceleration with full load:

≥3m/s²

Maximum deceleration with full load:

≥5m/s²

Maximum Climbing Capacity:

≥7%

Minimum turning radius:

≤11000mm

Vehicle range:

50km/100km

Dimensions:

Length×Width×Height

Power battery battery capacity:

141 kWh /282 kWh

Power battery capacity:

614VDC
