Four wheel Independent-driving and Four Wheel Independent-Steering chassis by wire

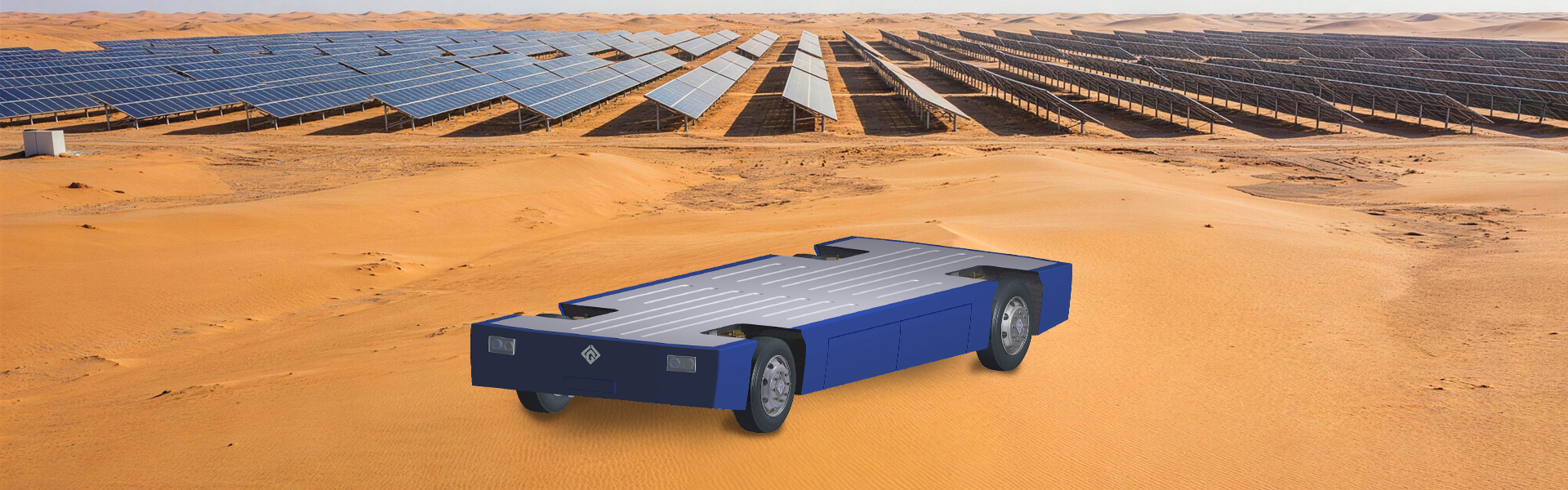

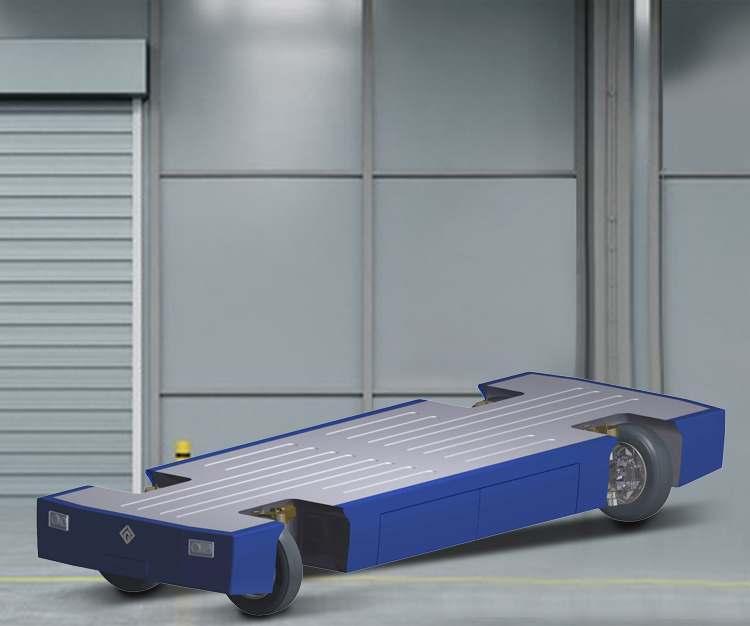

8-ton load four-wheel edge motor independent drive four-wheel independent steering chassis by wire

Features and advantages

Modular corner unit design, integrating drive, braking, steering, and suspension into one independent corner module

Four in-wheel drive, four-wheel independent steering

Capable of straight driving, diagonal driving, lateral movement, in-place rotation, head swing, and tail swing

High parking positioning accuracy

Reserved mounting brackets for intelligent driving sensors such as 360° surround view, LiDAR, cameras, and millimeter-wave radar

The chassis domain controller can communicate with the autonomous driving domain controller via CAN bus

The drive system and power battery are equipped with independent thermal management systems

Wide operating temperature range: -40°C to 60°C

Technical Specifications

GTB8

4×4 (four-wheel independent in-wheel drive, four-wheel independent steering)

8000 × 2300 × 1030 mm

5000 mm

6 mm

6 mm

35 km/h

40 km/h

≥150 mm

5 m/s²

18%

Straight, lateral, diagonal, in-place rotation, full figure-eight, half figure-eight, head swing, tail swing

Drive-by-wire hydraulic braking

EPB (Electronic Parking Brake)

Capacity

600 VDC
